LT212H
fdB
8518220000
Description:

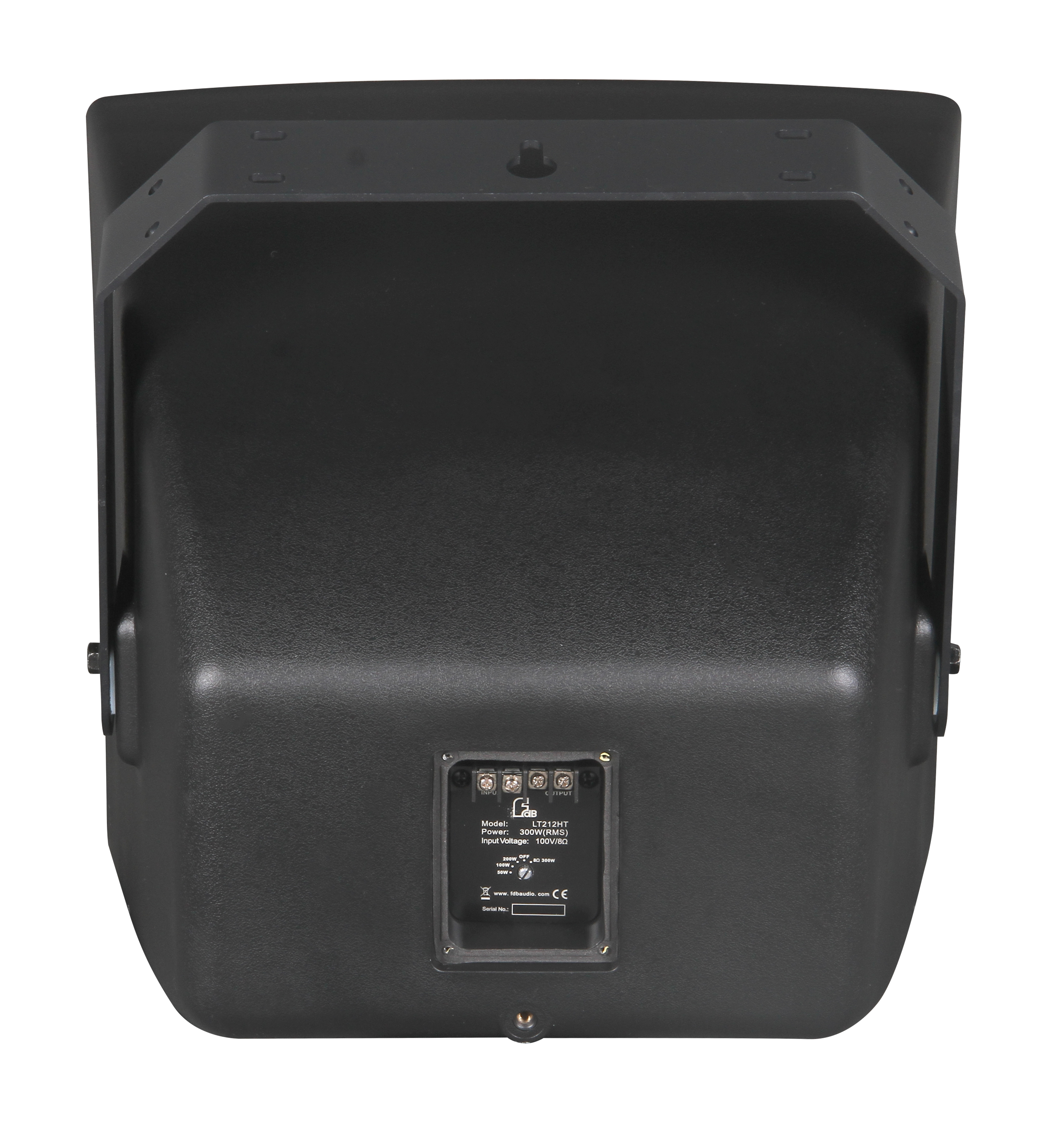

The LTH212H is a 12'' Two-way Loudspeaker.The product design gives priority to waterproof,dustproof,winproof and anti-UV aging,the unit is specially made and treated,the cabinet is formed by engineering plastic mold with five-layer of different materials composite grille.The product meets the IP56 standard(the fixed angle between front face and horizontal plane≤90°),the exposed metal parts are sprayed with stainless steel or aluminum,and the mounting bracket is sprayed with low-carbon steel to meet the all-weather use.The version can be customized to adapt to the marine environment(the mounting bracket is upgraded to 316 stainless steel).The audio transformer and band switch are designed to achieve a variety of different output powers including constant resistance.
Features:
●Highly weather-resistant IP56 rating
● Engineering plastic injection molding
● High SPL
● Horn loaded design for coaxial components
● Good used for sports facilities, stadiums,water parks,outdoor background music,swimming pools and a wide variety of other outdoor venue types.
Specification:
| MODEL | LT212H |
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 50Hz-20kHz |
| LF DRIVER | 1×12''/3''voice coil |
| HF DRIVER | 1×1''/1.7''voice coil |
| INPUT VOLTAGE | -- |
| RATED POWER | 300W RMS,1200W peak |
| SENSITIVITY(1watt/1meter) | 98dB |
| MAXIMUM SPL | 123dB continuous,129dB peak |
| IMPEDANCE | 8ohms |
| DISPERSION(-6dB) | 70°×50° |
| CROSSOVER FREQUENCIES | 2.2kHz |
| INPUT CONNECTORS | covered barrier strip terminals |
| PACKAGE SIZE | 472×442×460mm |
| NET WEIGHT | 18kg/pc |
| GROSS WEIGHT | 20kg/pc |
Configuration:
