| Quantity: | |
|---|---|
PLA118B
fdB
8518210000
Description:

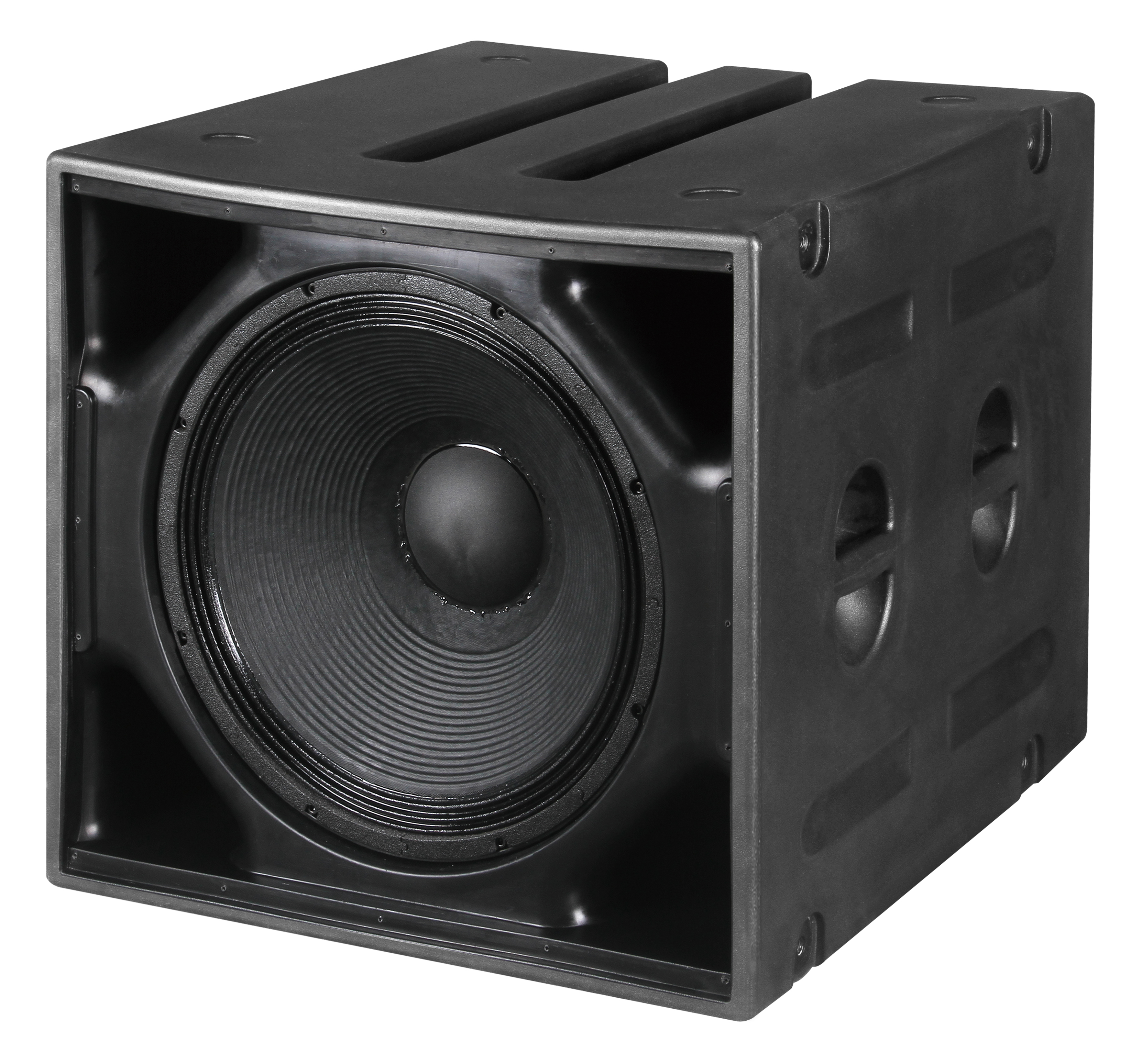

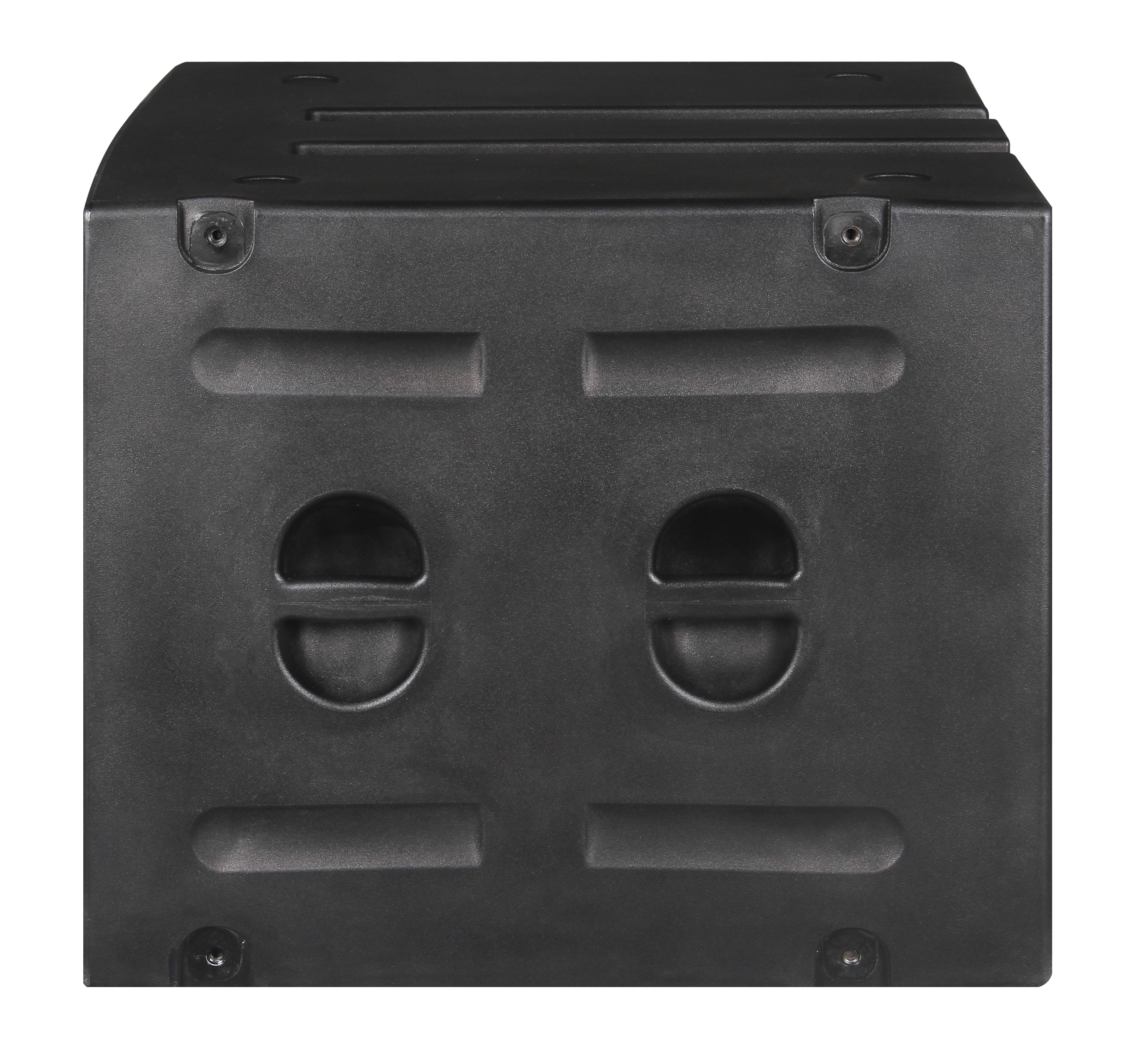

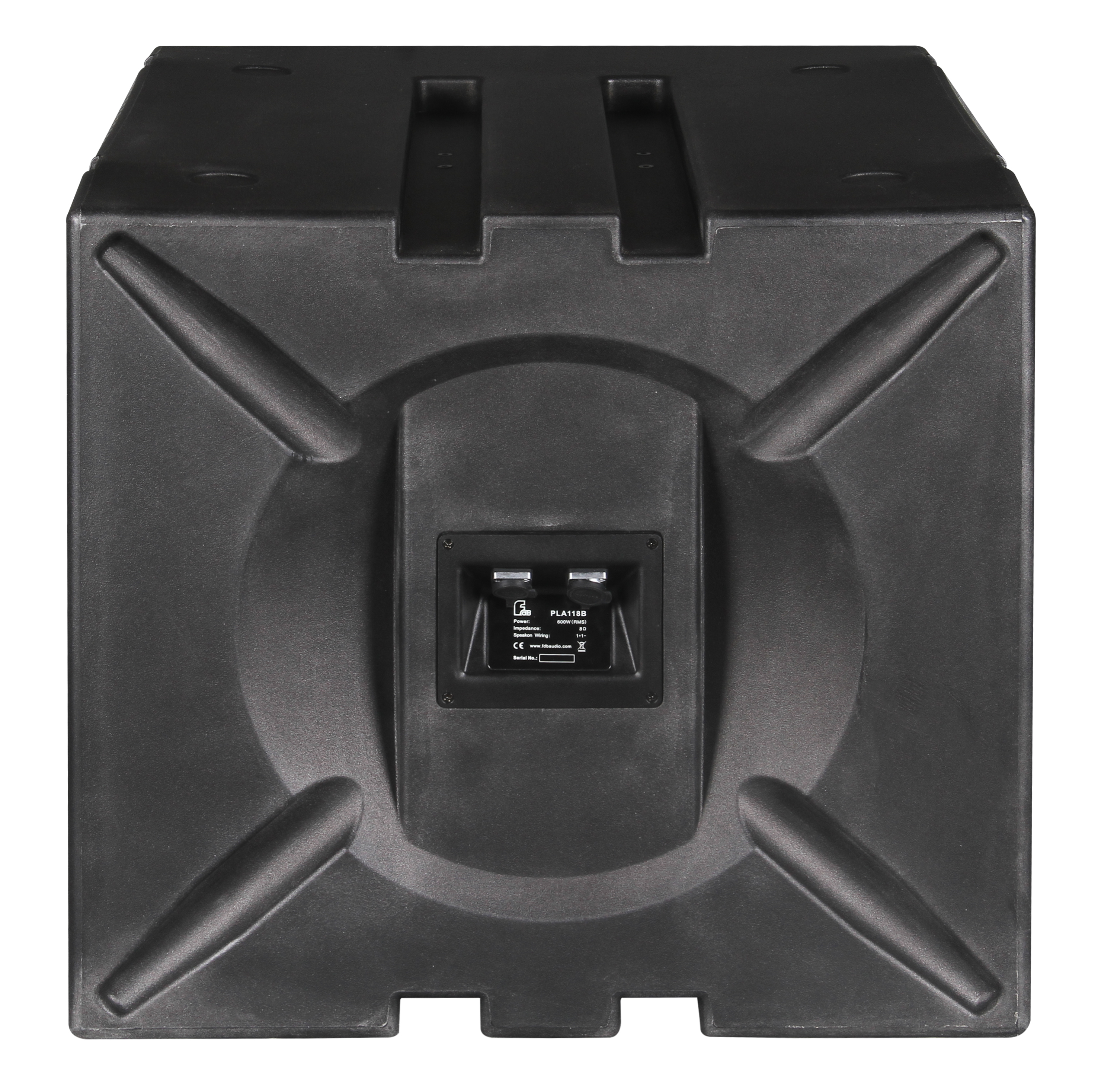

The PLA 118B is a all-weather line array speaker subwoofer,designed with priority given to waterproof,dustproof,winproof,anti-uv aging,the unit is specially made and treated, the cabinet is formed by engineering plastic mold with five-layer of different materials composite grille.The product meets the IP66 standard(the fixed angle between front face and horizontal planc≤90°),stainless steel or aluminum rigging parts,three-point hanging system,to ensure safety.
Features:
●Product parameters have been entered into EASE louspeaker database
●Passed IP66 testing
●Polymer mold forming box
●Five-layer of different materials composite grille

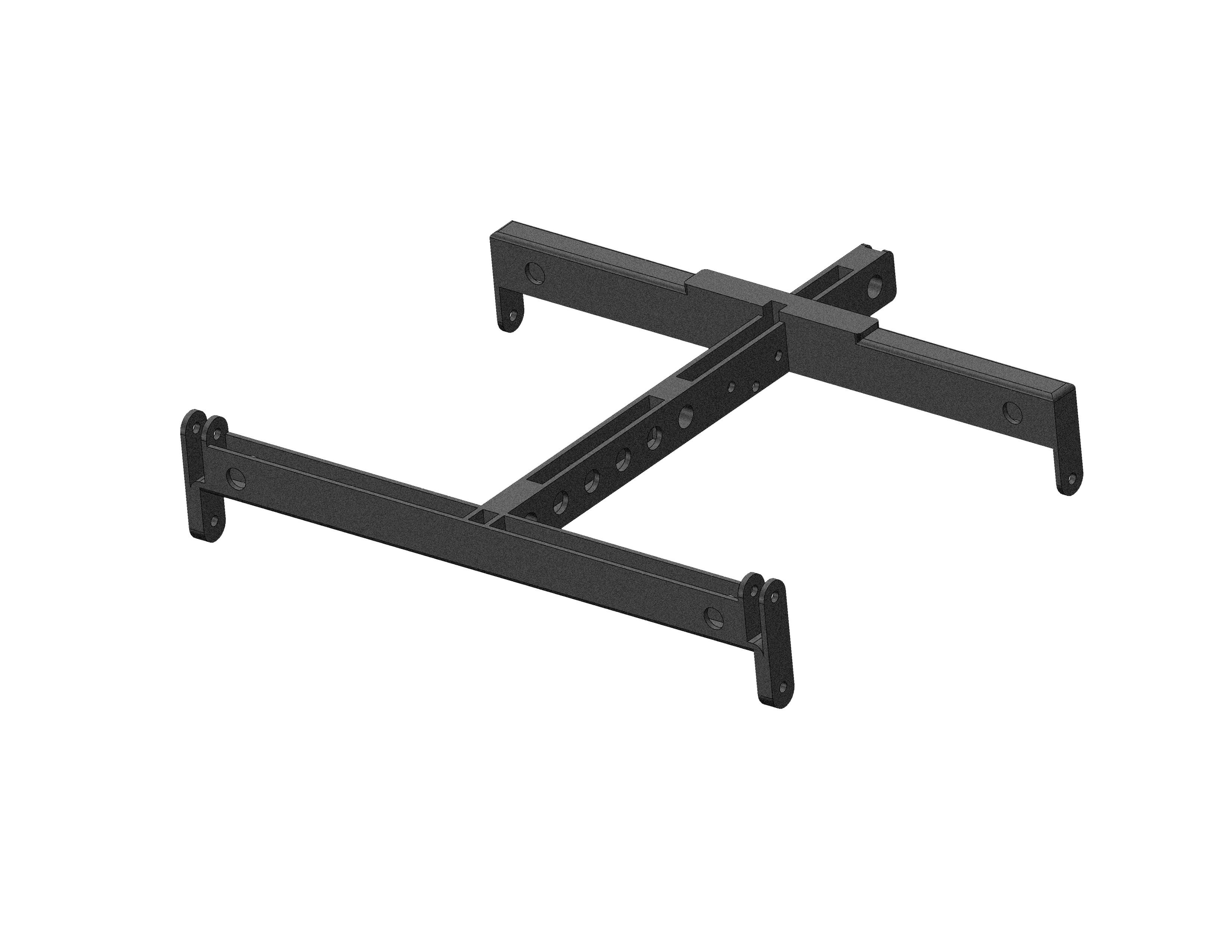

●Stainless steel or aluminium rigging parts
●Multiple ways of combination use
●Good used for all-weather outdoor sound reinforcement,large-scale cultural tourism projects
Specification:
MODEL | PLA118B |
| FREQUENCY RESPONSE(-3dB) | 45Hz-250Hz |
| FREQUENCY RESPONSE(-10dB) | 45Hz-300Hz |
| LF DRIVER | 1×18''/4''voice coil |
RATED POWER | 600W RMS,2400W peak |
| SENSITIVITY(1watt/1meter) | 99dB |
| MAXIMUM SPL | 127dB continuous,133dB peak |
| IMPEDANCE | 8 ohms |
INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 772×650×615mm |
| NET WEIGHT | 44kg/pc |
| GROSS WEIGHT | 49kg/pc |
Configuration:
Data Sheets Download:
