DLA308
fdB
8518220000
Description:
DLA308 is a dual 8'',2-way line array speaker can be combined with the subwoofer to be a line array system.Three-point connection way makes the hanging,supporting and stacking more fast,stable and safe.The system has the characteristics of light weight and good compatibility.The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●Product parameters have been entered into EASE loudspeaker database
●Passive way for full range speaker,simple operation
●Accurate coverage angle and uniform change with frequency
●Subwoofer with bass-reflex design, full and powerful bass
●Multiple ways of combination use
●Applications: multifunction halls, lecture halls,wedding halls,churches,touring
Specification:
| MODEL | DLA308 |
| FREQUENCY RESPONSE(-3dB) | 80Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 75Hz-20kHz |
| LF DRIVERS | 2×8"Neo/2"voice coil |
| MF DRIVERS | -- |
| HF DRIVERS | 1×1.4"Neo/3"voice coil |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY(1watt/1meter) | 99dB |
| MAXIMUM SPL | 125dB continuous,131dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION(-6dB) | Horizontal : 100° |
| CROSSOVER FREQUENCIES | 950Hz |
| INPUT CONNECTORS | 2×Speakon NL4 |

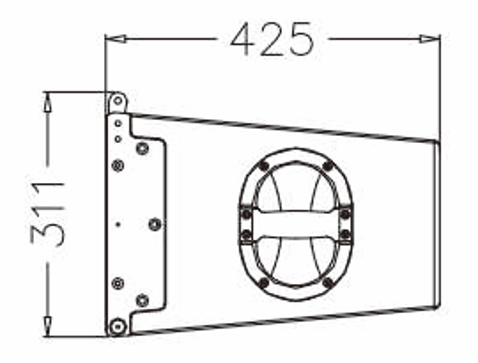

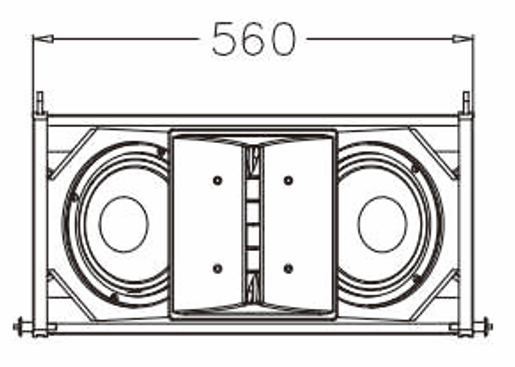

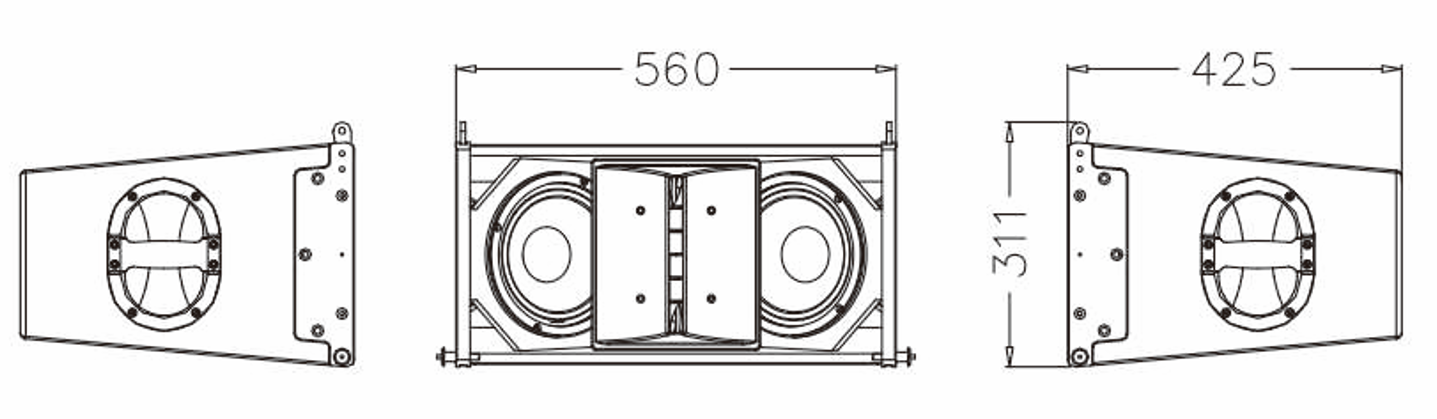

| PACKAGE SIZE | 515×375×655mm |
| NET WEIGHT | 20 kg/pc |
| GROSS WEIGHT | 23 kg/pc |
Configuration:


Data Sheets Download:
