| Quantity: | |
|---|---|
KW-510R/C/B
fdB
8518220000
Description:
The KW-510R/C/B is three way full range speaker with 5 units, which retains the characteristics of the traditional KTV speakers, such as full elasticity of bass, clear and bright mid-high frequency. Unit configuration: 1x10" mid-bass with foaming edge, 2x4" cone mid, 2x3" cone tweeter. The cabinet is made of MDF with wear-resistant PVC.
Features:
● Full elasticity of bass, clear and bight mid-high frequency
●Standard hanging device
●Depending on the environment, various colors are available
●Applications: small conference rooms, classrooms, restaurants, shops, family rooms
Specification:
| MODEL | KW510R/C/B |
| FREQUENCY RESPONSE(-3dB) | 35Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 30Hz-20kHz |
| LF DRIVERS | 1×10"Woofer |
| MF DRIVERS | 2×4" cone mid |
| HF DRIVERS | 2×3" cone tweeter |
| RATED POWER | 150W RMS,600W peak |
| SENSITIVITY(1watt/1 metre) | 92dB |
| MAXIMUM SPL | 114 dB continuous,120 dB peak |
| IMPEDANCE | 8 ohms |
| CROSSOVER FREQUENCIES | 1.5KHz, 3KHz |
| INPUT CONNECTORS | Terminal Clamp |
| PACKAGE SIZE | 712×397×621mm(1pair) |
| NET WEIGHT | 12 kg /pc |
| GROSS WEIGHT | 28 kg/Pair |

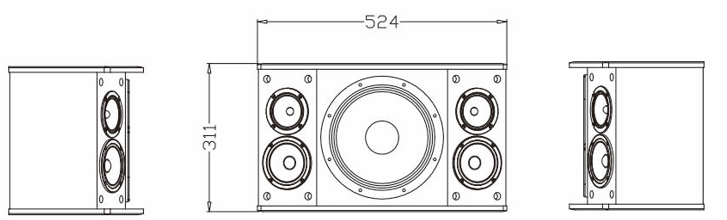

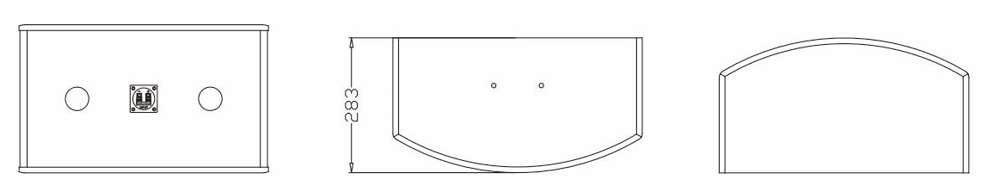

Configuration:
Data Sheets Download:
Description:
The KW-510R/C/B is three way full range speaker with 5 units, which retains the characteristics of the traditional KTV speakers, such as full elasticity of bass, clear and bright mid-high frequency. Unit configuration: 1x10" mid-bass with foaming edge, 2x4" cone mid, 2x3" cone tweeter. The cabinet is made of MDF with wear-resistant PVC.
Features:
● Full elasticity of bass, clear and bight mid-high frequency
●Standard hanging device
●Depending on the environment, various colors are available
●Applications: small conference rooms, classrooms, restaurants, shops, family rooms
Specification:
| MODEL | KW510R/C/B |
| FREQUENCY RESPONSE(-3dB) | 35Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 30Hz-20kHz |
| LF DRIVERS | 1×10"Woofer |
| MF DRIVERS | 2×4" cone mid |
| HF DRIVERS | 2×3" cone tweeter |
| RATED POWER | 150W RMS,600W peak |
| SENSITIVITY(1watt/1 metre) | 92dB |
| MAXIMUM SPL | 114 dB continuous,120 dB peak |
| IMPEDANCE | 8 ohms |
| CROSSOVER FREQUENCIES | 1.5KHz, 3KHz |
| INPUT CONNECTORS | Terminal Clamp |
| PACKAGE SIZE | 712×397×621mm(1pair) |
| NET WEIGHT | 12 kg /pc |
| GROSS WEIGHT | 28 kg/Pair |
Configuration:
Data Sheets Download:
