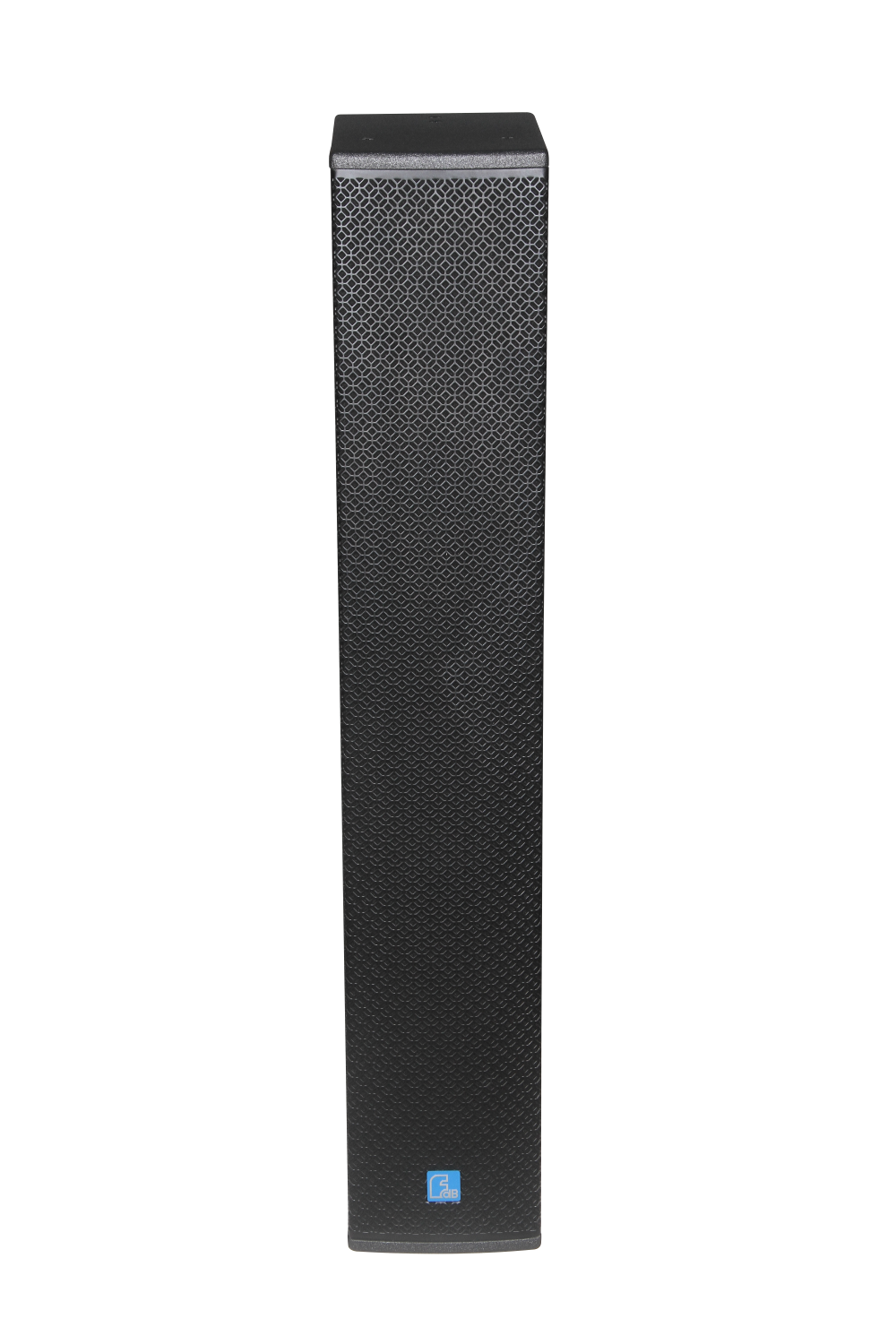

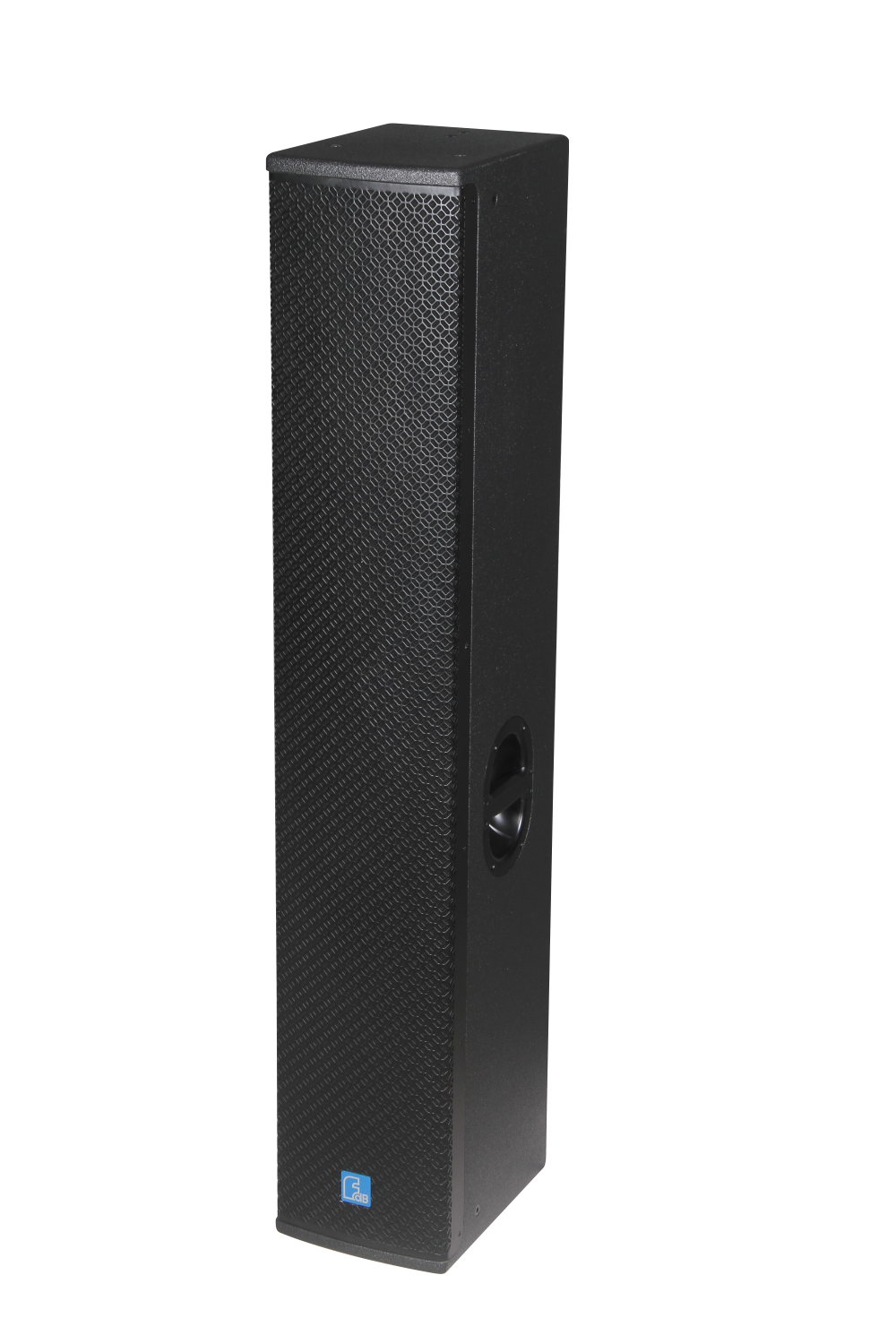

K8
fdB
8518220000
Description:
K series is a group of two-way column system with two channels digital amplifier with DSP. The small-sized column uses aluminum alloy housing and neodymium units,with small size, light weigh,high sensitivity,clear and bright sound,can be used alone or combined with active subwoofers into a sound reinforcement system. K12BAS, K15BAS are active subwoofers with two channels digital amplifier with DSP.
Features:
●Small volume and light weight for full range speaker
●Clear and bright sound for full range
●Full function, rich and elastic bass
●Multiple ways of instllation and combination
●Applications: band performance, small mobile business performance,conference rooms,multi-purpose halls, churches
Specification:
MODEL | K8 |
FREQUENCY RESPONSE(-3dB) | 80Hz-18kHz |
FREQUENCY RESPONSE(-10dB) | 75Hz-20kHz |
LF DRIVERS | 4x8"Neo/2"voice coil |
HF DRIVERS | 2×1.4''Neo/3"voice coil |
RATED POWER | 600W RMS,2400W peak |
SENSITIVITY(1watt/1meter) | 99dB |
MAXIMUM SPL | 126dB continuous,132dB peak |
IMPEDANCE | 8ohms |
DISPERSION(-6dB) | 100°×25°(-17.5°/+7.5°) |
CROSSOVER FREQUENCIES | 1.2kHz |
INPUT CONNECTORS | 2×Speakon NL4 |

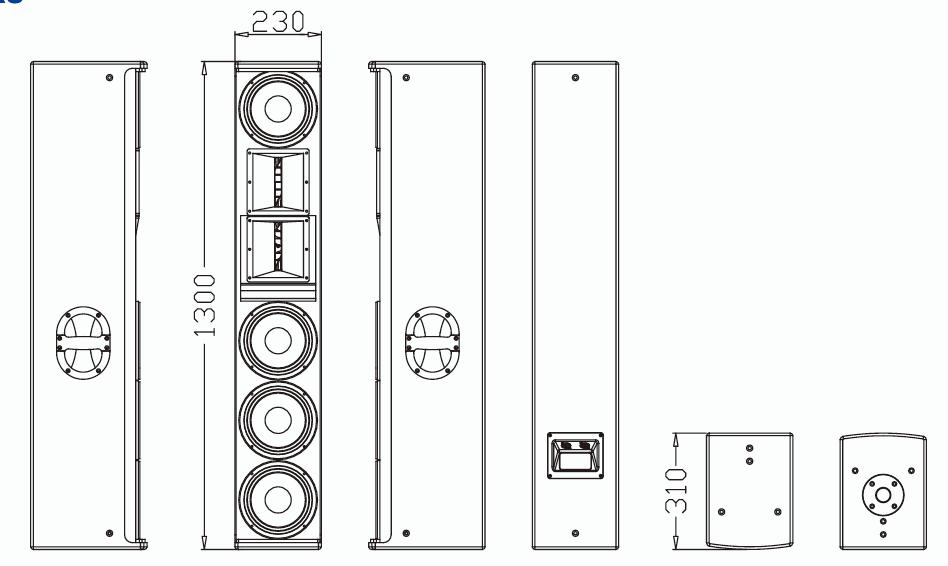

PACKAGE SIZE | 1390x400x325mm |
NET WEIGHT | 33 kg/pc |
GROSS WEIGHT | 37 kg/pair |
