K6
fdB
8518220000
Description:

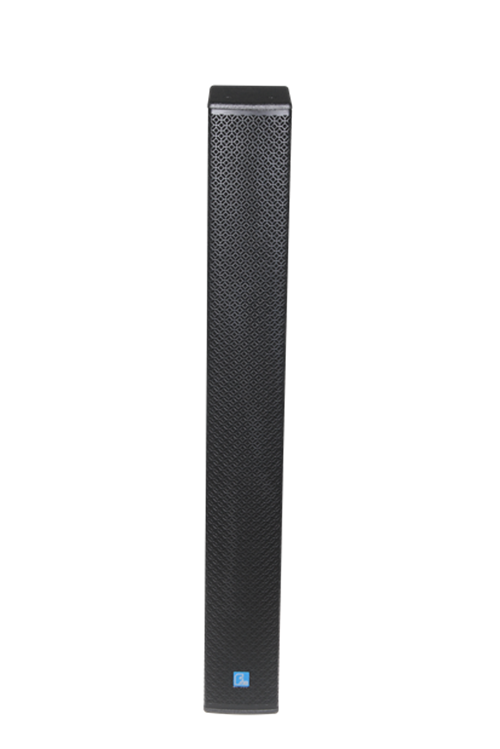

K series is a group of two-way column system with two channels digital amplifier with DSP. The small-sized column uses aluminum alloy housing and neodymium units,with small size, light weigh,high sensitivity,clear and bright sound,can be used alone or combined with active subwoofers into a sound reinforcement system. K12BAS, K15BAS are active subwoofers with two channels digital amplifier with DSP.
Features:
●Small volume and light weight for full range speaker
●Clear and bright sound for full range
●Full function, rich and elastic bass
●Multiple ways of instllation and combination
●Applications: band performance, small mobile business performance,conference rooms,multi-purpose halls, churches
Specification:
MODEL | K4 |
FREQUENCY RESPONSE(-3dB) | 80Hz-18kHz |
FREQUENCY RESPONSE(-10dB) | 75Hz-20kHz |
LF DRIVERS | 4x6"Neo/1.5"voice coil |
HF DRIVERS | 2×1''Neo/1.7"voice coil |
RATED POWER | 320W RMS,1280W peak |
SENSITIVITY(1watt/1meter) | 98dB |
MAXIMUM SPL | 123dB continuous,129dB peak |
IMPEDANCE | 8ohms |
DISPERSION(-6dB) | 110°×25°(-17.5°/+7.5°) |
CROSSOVER FREQUENCIES | 2.5kHz |
INPUT CONNECTORS | 2×Speakon NL4 |
PACKAGE SIZE | 1382x334x253mm |
NET WEIGHT | 17 kg/pc |
GROSS WEIGHT | 20 kg/pair |
