TA series 2 channel ampilifier
fdB
8518400090
Description:
The TA series professional amplifier using special circuit design techniques,focusing on the stability of the products in the long-term continuous full power conditions,the main components of the PCB board using SMT technology manufactuing,and circuit layout design through computer simulation system,so that the amplifier has a very high signal to noise ratio and anti-jamming capability.The TA series with higher damping and perfect filtering system,so that high frequency is more delicate and soft,low-frequency is more flexible.

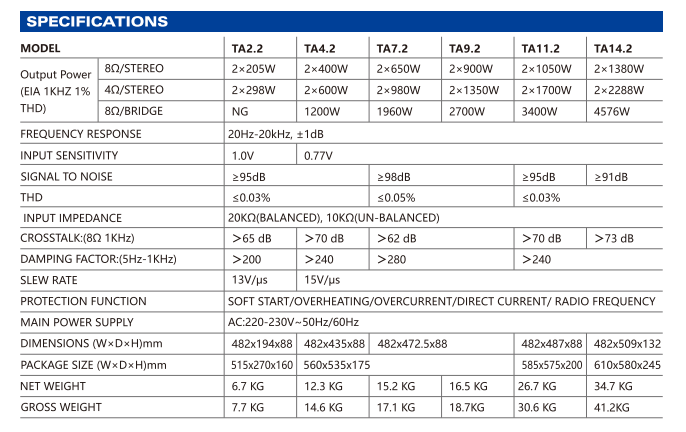

Specification:
| MODEL | TA2.2 | TA4.2 | TA7.2 | TA9.2 | TA11.2 | TA14.2 | |
| Output Power(EIA 1 KHZ 1%THD | 8Ω/STEREO | 2×205W | 2×400W | 2×650W | 2×900W | 2×1050W | 2×13800W |
| 4Ω/STEREO | 2×298W | 2×600W | 2×980W | 2×1350W | 2×1700W | 2×2288W | |
| 8Ω/BRIDGE | NG | 1200W | 1960W | 2700W | 3400W | 4576W | |
| FREQUENCY RESPONSE | 20Hz-20kHz,±1dB | ||||||
| INPUT SENSITIVITY | 1.0V | 0.77V | |||||
| SIGNAL TO NOISE | ≥95dB | ≥98dB | ≥95dB | ≥91dB | |||
| THD | ≤0.03% | ≤0.05% | ≤0.03% | ||||
| INPUT IMPEDANCE | 20KΩ（BALANCED）,10KΩ(UN-BALANCED) | ||||||
| CROSSTALK:(8Ω 1KHz) | ＞65dB | ＞70dB | ＞62dB | ＞70dB | ＞73dB | ||
| DAMPING FACTOR:(5Hz-1KHz) | ＞200 | ＞240 | ＞280 | ＞240 | |||
| SLEW RATE | 13V/μs | 15V/μs | |||||
| PROTECTION FUNCTION | SOFT START/OVERHEATING/OVERCURRENT/DIRECT CURRENT/RADIO FREQUENCY | ||||||
| MAIN POWER SUPPLY | AC:200-230V～50Hz/60Hz | ||||||
| DIMENSIONS(W×D×H)mm | 482×194×88 | 482×435×88 | 482×472.5×88 | 482×487×88 | 482×509×88 | ||
| PACKAGE SIZE(W×D×H)mm | 505×270×160 | 560×535×175 | 585×575×200 | 610×580×245 | |||
| NET WEIGHT | 6.7KG | 12.3KG | 15.2KG | 16.5KG | 26.7KG | 34.7KG | |
| GROSS WEIGHT | 7.7KG | 14.6KG | 17.1KG | 18.7KG | 30.6KG | 41.2KG | |
