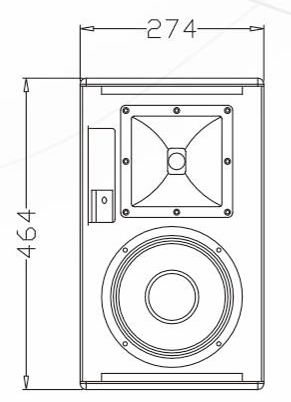

LH8Ⅱ
fdB
8518220000
Description:
The LH8Ⅱis a 8", small sized, light weight, high SPL, two way full range speaker with clear and bright sound. Unit configuration: 1x8" high efficiency neodymium mid-bass unit, 1x1" exit throat 44mm neodymium poliyimide diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●High quality unit configuration, high strength plywood housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: speech reinforcement, conference rooms, background music, bars and monitor speaker for small stage
Specification:
MODEL | LH8Ⅱ |
FREQUENCY RESPONSE(-3dB) | 80Hz-18KHz |
FREQUENCY RESPONSE(-10dB) | 75Hz-20KHz |
LF DRIVERS | 1×8"Neo/2"voice coil |
| HF DRIVERS | 1×1"Neo/1.7"voice coil |
| RATED POWER | 150W RMS,600W peak |
SENSITIVITY(1watt/1 metre) | 93dB |
MAXIMUM SPL | 115dB continuous,121 dB peak |
IMPEDANCE | 8 ohms |
DISPERSION(-6dB) | 90°×50° |
CROSSOVER FREQUENCIES | 2.3kHz |
INPUT CONNECTORS | 2xSpeakon NL4 |
PACKAGE SIZE | 344×296×539mm |
NET WEIGHT | 8 kg/pc |
GROSS WEIGHT | 9 kg/pc |
Configuration:
Data Sheets Download:
