PLA612
fdB
8518220000
Description:
PLA612 is a Bi-amp, three-way, all-weather line array speaker, designed with priority given to waterproof, dustproof, windproof, anti-uv aging, and five-layer grille design of different materials. The product meets the IP66 standard, all hanging parts and connecting parts are made of stainless steel oraluminum,features low- distortion mid-bass unit and mid-high coaxial driver with special waveguide and horn, accurate coverage, three-point hanging system, ensure safety. Unit configuration:2x12" high efficiency mid-bass unit, 2x1.4" exit throat 90mm voice coil neodymium MF driver and 44mm HF driver coaxial neodymium unit. The cabinet is made of polymer composite material through a special process.
Features:
●Product parameters have been entered into EASE loudspeaker database
●Pass IP66 testing
●Polymer composite material mold forming box, five layers of waterproof, dustproof composite grille, strong weather resistance
●Bi-amp way, give full play to the unit efficiency, obtain the best sound quality
●Can be matched with PLA212B
●Applications: outdoor fixed installation,large-scale cultural tourism projects
Specification:
| MODEL | PLA612 |
| FREQUENCY RESPONSE(-3dB) | LF:65Hz-950KHz; MF+HF:550Hz-17KHz |
| FREQUENCY RESPONSE(-10dB) | LF:60Hz-1KHz; MF+HF:500Hz-18KHz |
| LF DRIVERS | 2×12"/3"voice coil |
| MF DRIVERS | 2×1.4"Neo/3.5"voice coil |
| HF DRIVERS | 2×1.4"Neo/1.7"voice coil |
| RATED POWER | LF:800W RMS,3200W peak; |
| MF+HF: 300W RMS,1200W peak | |
| SENSITIVITY(1watt/1meter) | LF: 101dB; |
| MF+HF: 110dB | |
| MAXIMUM SPL | LF: 130dB continuous,136dB peak |
| MF+HF: 134dB continuous,140dB peak | |
| IMPEDANCE | LF: 8 ohms; MF+HF:16 ohms |
| DISPERSION(-6dB) | Horizontal coverage: 90° |
| CROSSOVER FREQUENCIES | 600Hz Passive,6KHz Bi-amp |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 700×524×931mm |
| NET WEIGHT | 39 kg/pc |
| GROSS WEIGHT | 46 kg/pc |

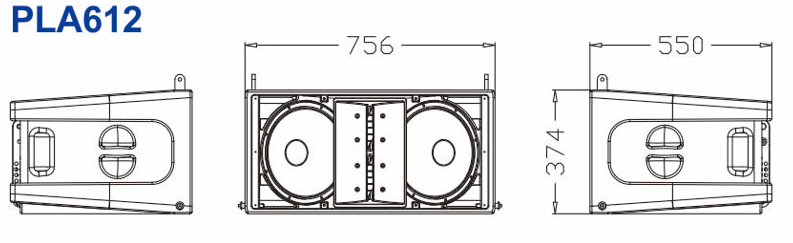

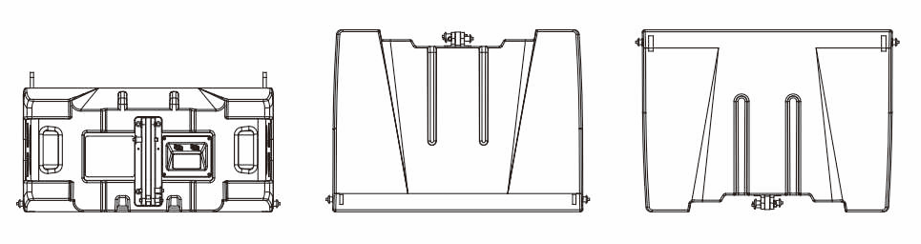

Configuration:
