| Quantity: | |
|---|---|
DLA118BAS
fdB
8518210000
Description:
DLA118BAS is equipped with indepedant control two channels digital amplifier with DSP based on DLA118B to be an active system with DLA408 or DLA112.Three-point connection way makes the hanging,supporting and stacking more fast,stable and safe.The system has the characteristics of light weight and good compatibility.The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●High quality component, bass-reflex design, full and powerful sound
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, stadiums and touring
Specification:
| MODEL | DLA118BAS |
| FREQUENCY RESPONSE(-3dB) | 45Hz-250kHz |
| FREQUENCY RESPONSE(-10dB) | 40Hz-300kHz |
| LF DRIVERS | 1×18"/4"voice coil |
| MF DRIVERS | -- |
| HF DRIVERS | -- |
| RATED POWER | 900W/4Ω+1200W/4Ω |
| SENSITIVITY(1watt/1meter) | -- |
| MAXIMUM SPL | 127dB continuous,133dB peak |
| NOMINAL IMPEDANCE | -- |
| DISPERSION(-6dB) | -- |
| CROSSOVER FREQUENCIES | -- |
| INPUT CONNECTORS | XLR |

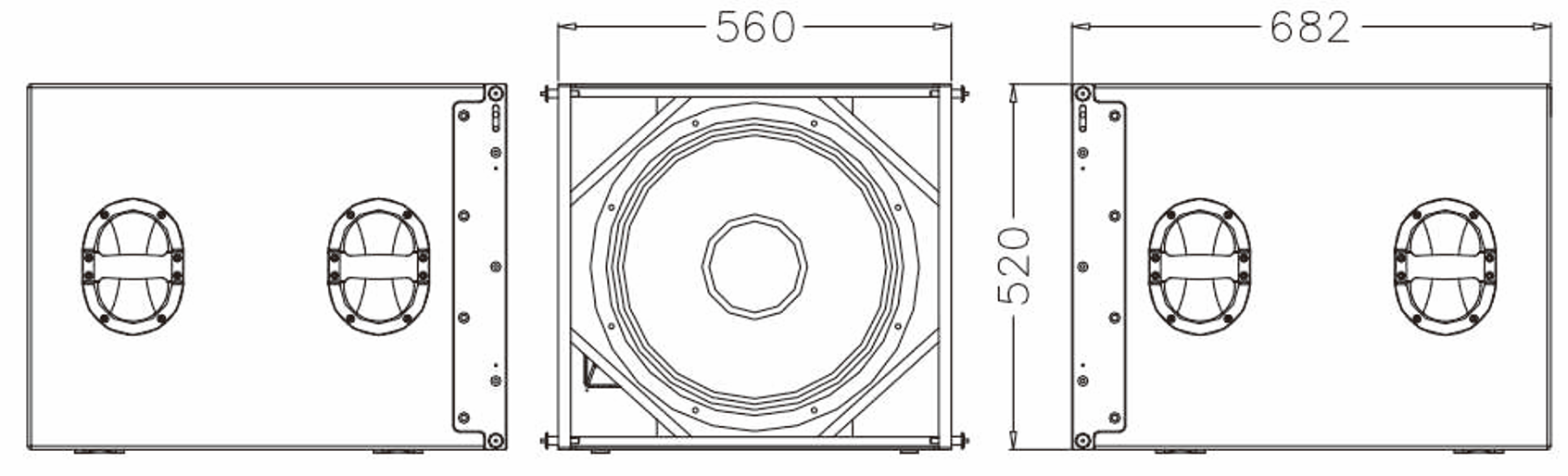

| PACKAGE SIZE | 772×650×615mm |
| NET WEIGHT | 46 kg/pc |
| GROSS WEIGHT | 51 kg/pc |
Configuration:
