DLA118B
fdB
8518210000
Description:
DLA118B is a single 18" subwoofer. It features 1x18" 100mm voice coil woofer, bass-reflex design, three-point hanging system matched with DLA408 and DLA112, can be hung and stacked to improve the low frequency performance of the system. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA118BAS is equipped with indepedant control two channels digital amplifier with DSP based on DLA118B to be an active system with DLA408 or DLA112.
Features:
●High quality component, bass-reflex design, full and powerful sound
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, stadiums and touring
Specification:
| MODEL | DLA118B |
| FREQUENCY RESPONSE(-3dB) | 45Hz-250kHz |
| FREQUENCY RESPONSE(-10dB) | 40Hz-300kHz |
| LF DRIVERS | 1×18"/4"voice coil |
| MF DRIVERS | -- |
| HF DRIVERS | -- |
| RATED POWER | 600W RMS,2400W peak |
| SENSITIVITY(1watt/1meter) | 99dB |
| MAXIMUM SPL | 127dB continuous,133dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION(-6dB) | -- |
| CROSSOVER FREQUENCIES | -- |
| INPUT CONNECTORS | 2×Speakon NL4 |

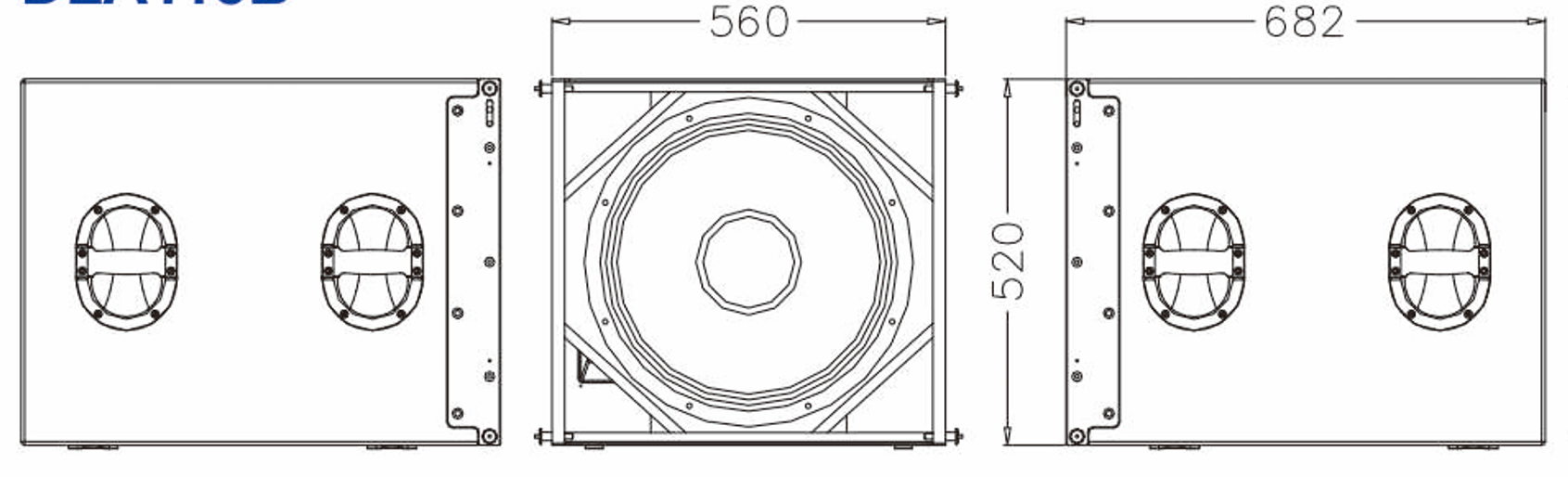

| PACKAGE SIZE | 772×650×615mm |
| NET WEIGHT | 44 kg/pc |
| GROSS WEIGHT | 49 kg/pc |
Configuration:
Data Sheets Download:
