U112HVI
fdB
8518220000
Description:

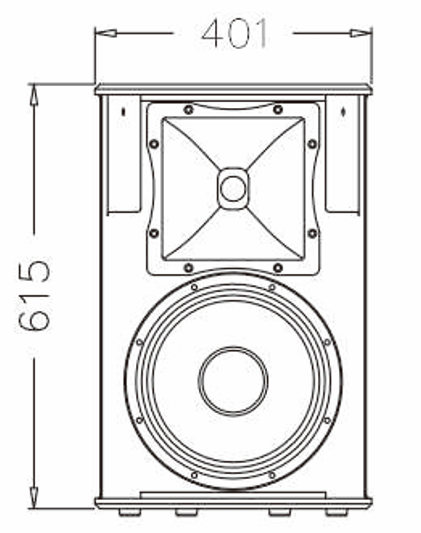

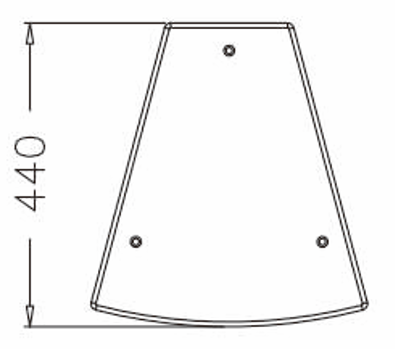

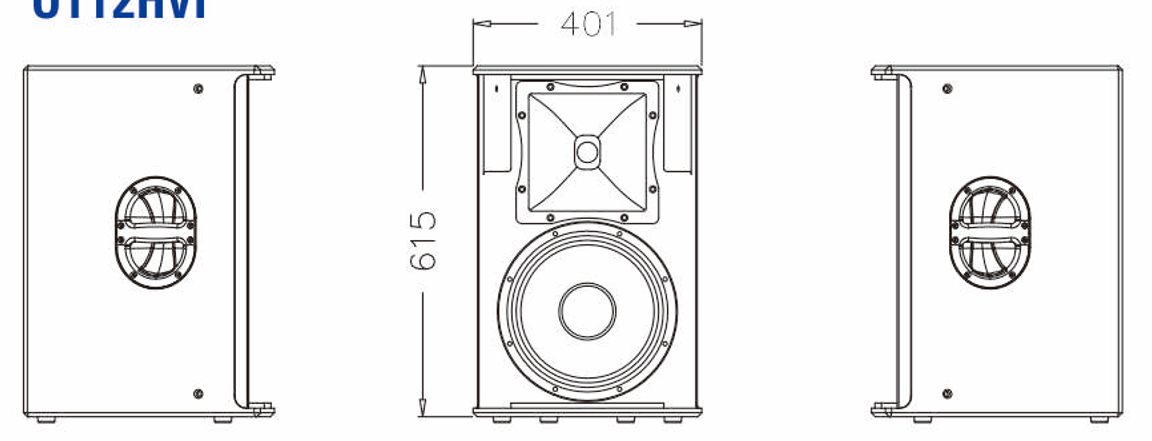

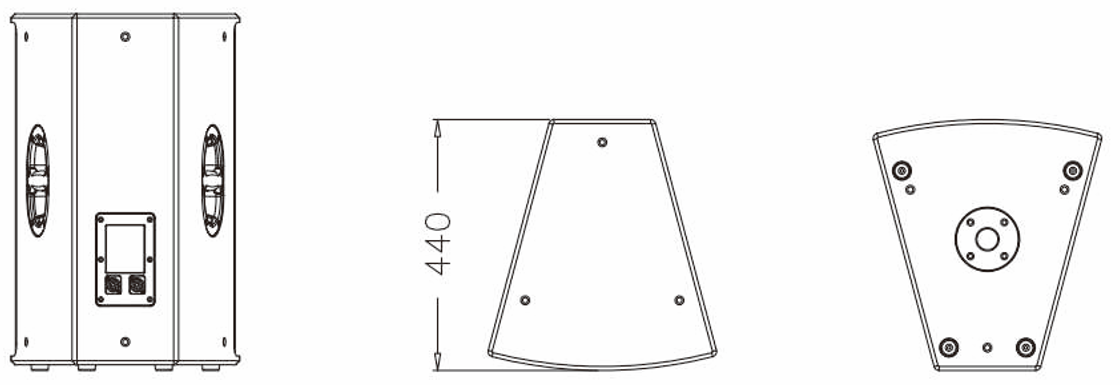

The U112HVI is a 12", high power, two way full range speaker with bright and powerful sound. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1.4" exit throat 75mm composite diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
Specification:
MODEL | U112HVI |
FREQUENCY RESPONSE(-3dB) | 50Hz-18KHz |
FREQUENCY RESPONSE(-10dB) | 45Hz-20KHz |
LF DRIVERS | 1×12"/3"voice coil |
| HF DRIVERS | 1×1.4"/3"voice coil |
RATED POWER | 450W RMS,1800W peak |
SENSITIVITY(1watt/1 metre) | 97dB |
MAXIMUM SPL | 124dB continuous,130 dB peak |
IMPEDANCE | 8 ohms |
DISPERSION(-6dB) | 90°x 40° |
CROSSOVER FREQUENCIES | 1.5kHz |
INPUT CONNECTORS | 2×Speakon NL4 |
PACKAGE SIZE | 530×495×710mm |
NET WEIGHT | 25 kg/pc |
GROSS WEIGHT | 29 kg/pair |
Configuration:
Data Sheets Download:
