U110VI
fdB
8518220000
Description:

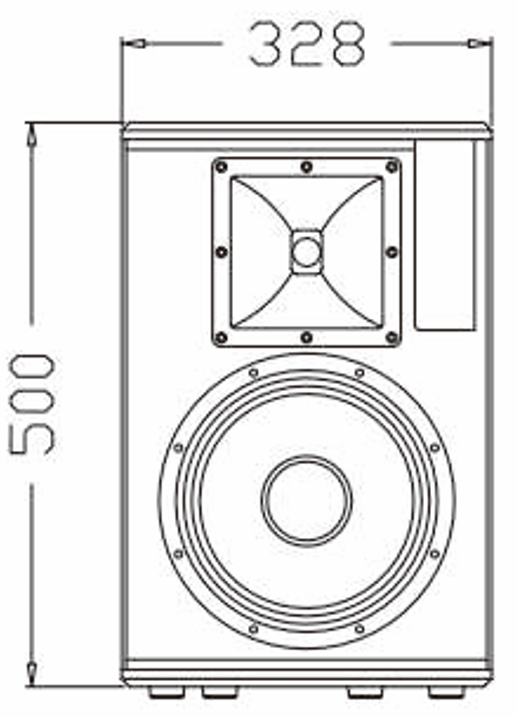

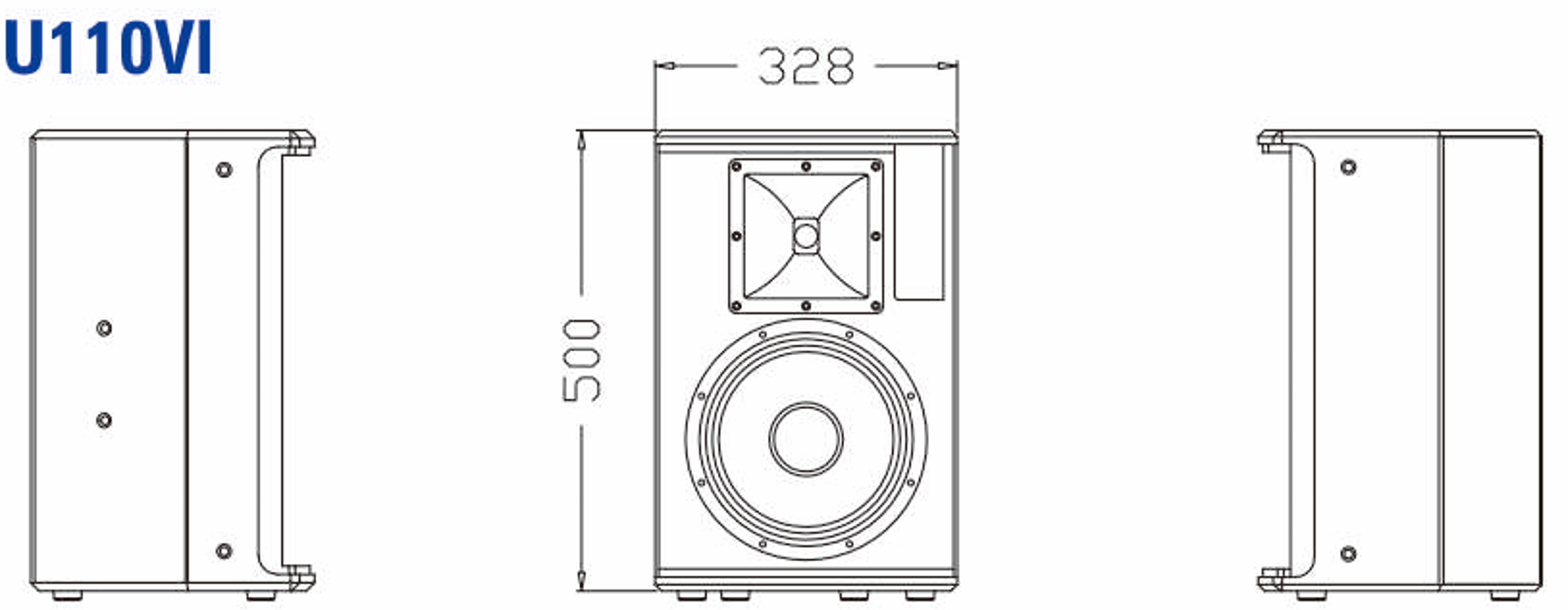

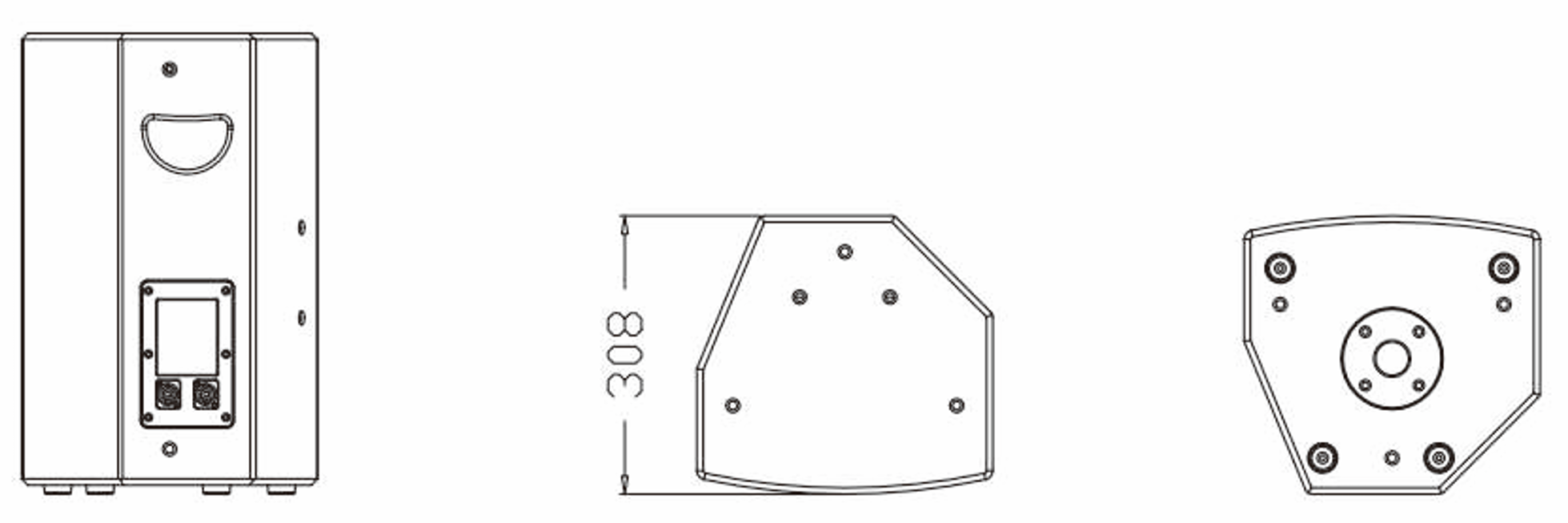

The U110VI is a 10" two way full range speaker with clear and bright sound. Unit configuration: 1x10" high efficiency mid-bass unit, 1x1" exit throat 44mm poliyimide diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wearresistant polyurea paint.
Features:
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
Specification:
MODEL | U110VI |
FREQUENCY RESPONSE(-3dB) | 55Hz-18KHz |
FREQUENCY RESPONSE(-10dB) | 50Hz-20KHz |
LF DRIVERS | 1×10"/2.5"voice coil |
| HF DRIVERS | 1×1"/1.7"voice coil |
RATED POWER | 250W RMS,1000W peak |
RATED POWER | 250W RMS,1000W peak |
SENSITIVITY(1watt/1 metre) | 95dB |
MAXIMUM SPL | 119dB continuous,125 dB peak |
IMPEDANCE | 8 ohms |
DISPERSION(-6dB) | 90°x 50° |
CROSSOVER FREQUENCIES | 2kHz |
INPUT CONNECTORS | 2×Speakon NL4 |
PACKAGE SIZE | 398×378×577mm |
NET WEIGHT | 15 kg/pc |
GROSS WEIGHT | 18 kg/pc |
Configuration:
