DLA115BAS
fdB
8518210000
Description:
DLA115BAS is equipped with two channels digital amplifier with DSP based on DLA115B to be an active system with DLA206.Three-point connection way makes the hanging,supporting and stacking more fast,stable and safe.The system has the characteristics of small volume and light weight.The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
Features:
●Passive way for full range speaker,simple operation
●Accurate coverage angle and uniform change with frequency
●Subwoofer with bass-reflex design,rubber edge unit,full and elastic bass
●Multiple ways of combination use
●Applications: multifunction halls, lecture halls, auditoriums, churches, and small touring
Specification:
| MODEL | DLA115BAS |
| FREQUENCY RESPONSE(-3dB) | LF:45Hz-250Hz,System: 45Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | LF:40Hz-300Hz,System: 40Hz-20kHz |
LF DRIVERS | 1×15"/3"voice coil |
| HF DRIVERS | -- |
| RATED POWER | 900W/4Ω+800W/8Ω |
| SENSITIVITY(1watt/1meter) | -- |
| MAXIMUM SPL | 125dB continuous,131dB peak |
| NOMINAL IMPEDANCE | -- |
| DISPERSION(-6dB) | -- |
| CROSSOVER FREQUENCIES | -- |
| INPUT CONNECTORS | XLR |

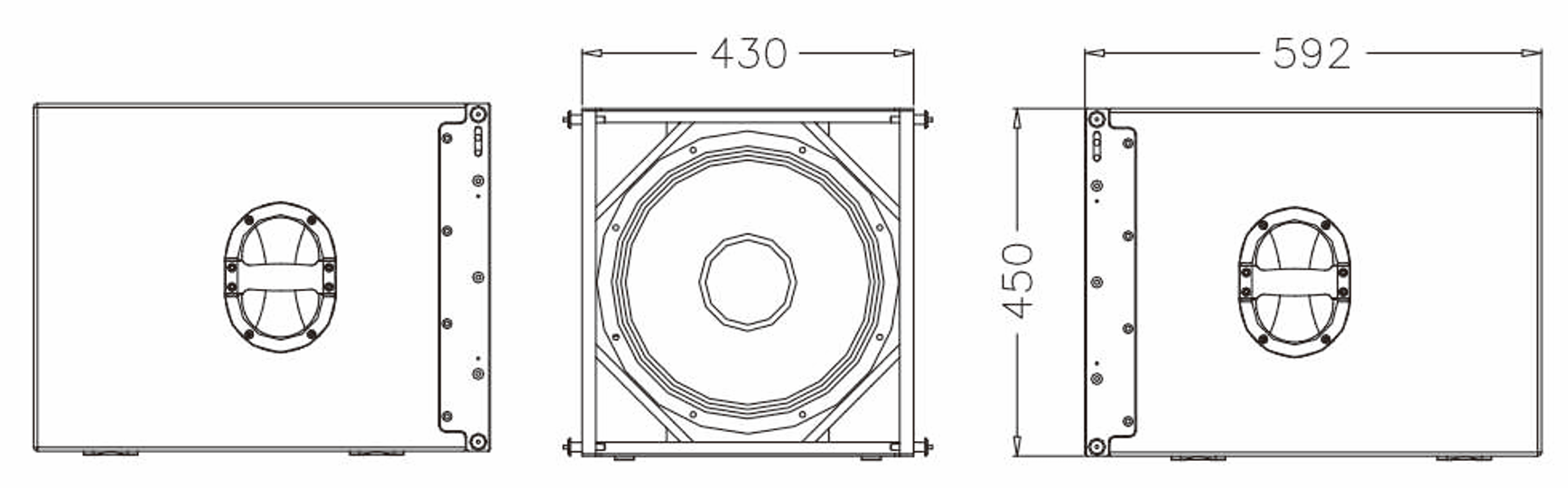

| PACKAGE SIZE | 682×520×545mm |
| NET WEIGHT | 36 kg/pc |
| GROSS WEIGHT | 40 kg/pc |
Configuration:
