Investing in an outdoor audio system transforms your backyard into an entertainment oasis. However, the elements constantly threaten to destroy this setup. The true challenge lies in surviving extreme weather day after day. Standard indoor wiring and makeshift tape jobs inevitably lead to oxidized copper. You will experience distorted audio, frustrating short circuits, and premature equipment failure. Moisture, UV rays, and drastic temperature fluctuations quickly degrade unprotected connections.

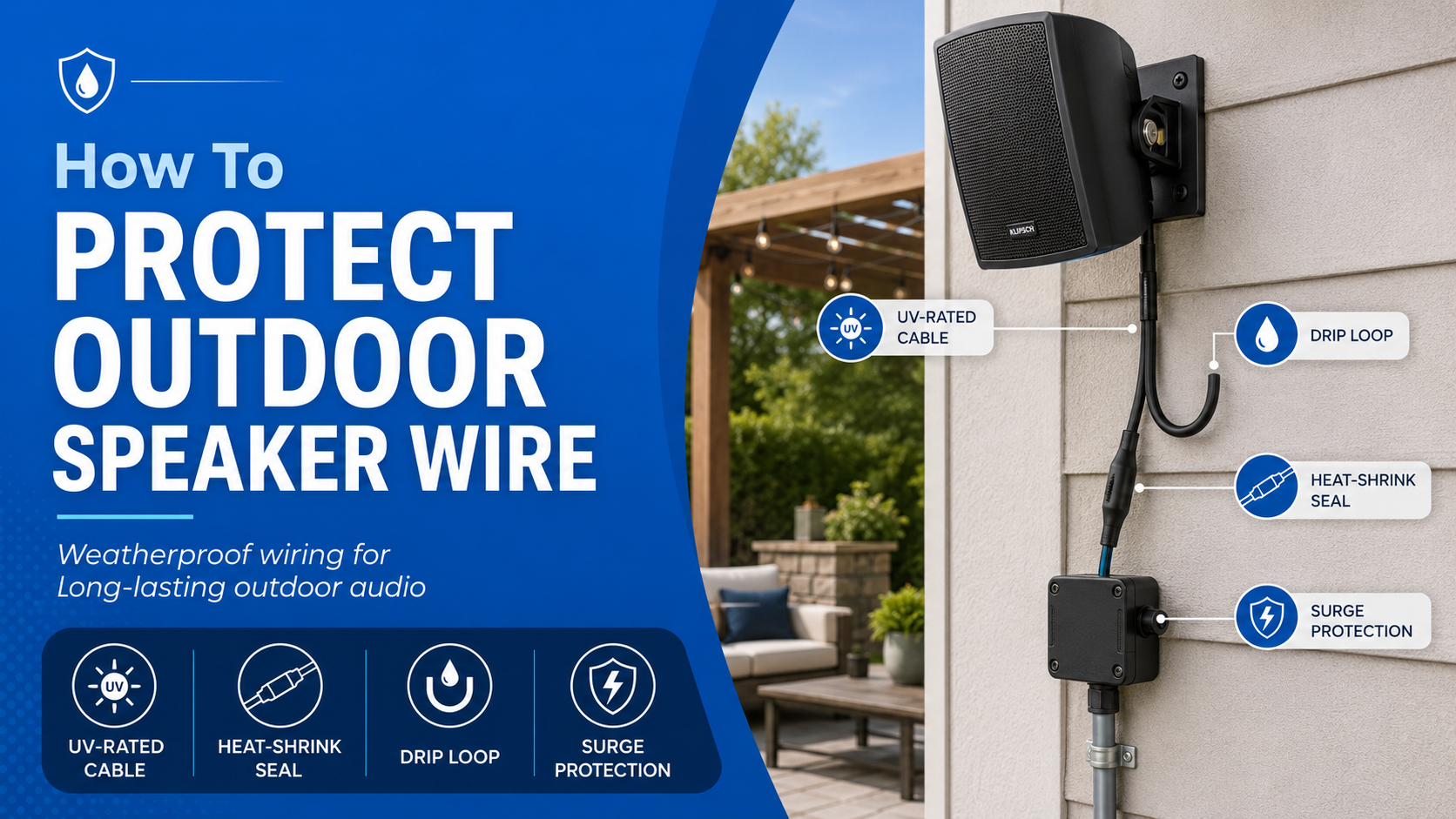

Protecting your outdoor speaker wire requires a rigorous, tiered approach. You must select the correct baseline materials before installation begins. Next, you need to physically manage water flow around your equipment. Finally, you must chemically seal the vulnerable connection points against humidity. This guide provides an evidence-based framework. It will help you secure your audio investment against moisture, UV degradation, and extreme seasonal shifts. You will learn practical techniques to ensure uninterrupted audio performance year-round.
Cable selection is the primary defense: UV-rated, direct-burial pure copper wire is non-negotiable; Copper-Clad Aluminum (CCA) will rapidly oxidize in outdoor environments.
Terminations are the weak link: A waterproof cable jacket does not protect the cut ends. Connections require physical and chemical barriers (like heat-shrink and dielectric compounds) to survive.
Water management beats total waterproofing: Strategically routing wires to shed water is more cost-effective and reliable than attempting to achieve a flawless IP68 seal on exposed terminals.
Never ground the speaker wire itself: Grounding audio signal wires can instantly short out push-pull amplifiers; use inline surge protectors instead.
Winterizing requires specific tactics: Abandon standard electrical tape for winter storage; utilize Noalox-filled wire nuts to protect bare leads from snow and ice without leaving adhesive residue.
Applying aftermarket protection to the wrong cable type is a sunk cost. The foundation of your system must be inherently weather-resistant. A high-quality outdoor speaker demands equally resilient wiring to function properly. If you cut corners on the baseline materials, no amount of exterior sealant will save your system from eventual failure.
You must restrict your selection to cables explicitly marked for "Direct Burial" or "In-Wall/Outdoor Rated." Standard indoor jackets deteriorate rapidly outside. Direct sunlight causes indoor PVC to become brittle, crack, and flake away. Outdoor-rated cables feature thick, UV-resistant jackets. They flex and expand without tearing during wild temperature swings. They also resist minor chemical exposure from fertilizers and pest control sprays.
Mandate Oxygen-Free Pure Copper for your installation. Reject Copper-Clad Aluminum (CCA) entirely for outdoor use. CCA blends a cheap aluminum core with a thin copper coating. Once you strip the jacket and expose CCA to ambient humidity, the aluminum core rapidly corrodes. It turns into a useless white powder. This ruins conductivity and kills your sound. Pure copper resists this internal breakdown naturally.
Wire thickness impacts audio quality over long distances. You must factor in distance-to-impedance drops. Resistance builds up as wire length increases, which starves your speakers of power. Refer to the table below for maximum recommended distances based on standard AWG sizes.
Speaker Impedance | Wire Gauge (AWG) | Maximum Effective Distance |
|---|---|---|
8-ohm (Single Pair) | 16 AWG | 50 feet (15 meters) |
4-ohm (Dual Setup) | 16 AWG | 24 feet (7.3 meters) |
8-ohm (Single Pair) | 14 AWG | 80 feet (24 meters) |
8-ohm (Single Pair) | 12 AWG | 120 feet (36 meters) |
Landscape installations usually require excessive trenching. To reduce trenching and conduit complexity, run a single 4-core outdoor cable from your indoor amplifier to the first speaker location. At the first speaker, terminate two cores to power it. Then, branch the remaining two cores directly to the second speaker. This daisy-chain routing method minimizes landscape disruption and cuts your cable pulling time in half.
The most common point of failure occurs exactly where you strip the wire jacket. A robust cable casing means nothing if the raw copper tips remain exposed. You must focus your protection efforts on these exposed connection points.
Every setup features a "Y-split" where the main cable jacket is stripped back. This separates the positive and negative leads. Water easily wicks down into the main casing through this opening. To solve this, apply "Cable Pants." These are specialized heat-shrink breakout boots. Slide them over the Y-split and apply heat. They permanently seal this junction and prevent internal water migration.
Many beginners wrap standard electrical tape around connections. This is a common mistake. Electrical tape creates tiny folds that invite moisture via capillary action. Eventually, the adhesive fails, leaving a sticky, wet mess.
Instead, coat your bare wire connections heavily in petroleum jelly or dielectric grease. Next, slide a piece of marine-grade, adhesive-lined heat shrink over the greased connection. Apply a heat gun. The shrinking tubing forces the grease to fill all micro-voids around the copper strands. This combination creates a phenomenal, low-cost moisture barrier.
For permanent, high-end landscape installations, you need stronger measures. Enclose the speaker terminals in a small, IP-rated junction box. You can adhere this box directly to the back of the speaker enclosure using silicone. Alternatively, use electrical potting resin kits. You pour liquid resin over the splice, which hardens into a solid block of plastic. This achieves total environmental isolation, though it makes future maintenance difficult.
Chasing flawless IP68 waterproofing at the terminal level is expensive. It is also prone to eventual failure. Materials shift, expand, and contract over years of seasonal abuse. Shifting your strategy to architectural water management yields higher reliability.
Instead of trying to permanently glue connections shut, construct physical barriers. Permanently sealing terminals ruins your ability to service them later. Instead, build "drip roofs" using specialized waterproof tape or modified project boxes. You place these miniature roofs over the terminal posts. They shield the raw metal from direct rainfall while leaving the underside accessible for future repairs.
Water constantly travels down cables via surface tension. A drip loop breaks this path. Always leave a U-shaped sag in the wire just before it enters the speaker housing or exterior wall. Here is how to form one correctly:
Pull the main cable closely toward the terminal point.
Allow the wire to drop 3 to 4 inches below the actual connection port.
Bend the wire smoothly back upward to create a visible "U" shape.
Fasten the end to the speaker post or push it through the wall opening.
Gravity forces flowing water to collect at the bottom of the loop and drip onto the ground. It cannot travel upward against gravity into the connection point.
Your cable path determines its lifespan. Route cables safely under eaves and alongside structural overhangs. Avoid direct soil-to-air transition zones. These areas suffer from massive moisture pooling and rapid temperature shifts. Fasten the wire tightly against brick or siding to minimize wind vibration, which slowly loosens terminal connections over time.
Leaving connections exposed during seasonal tear-downs destroys the leads. If you bring your speakers inside for freezing winters, you must protect the outdoor wire ends. Ice, snow, and condensation will obliterate bare copper.
If your speakers must be removed annually, terminate your wires with high-quality banana plugs. Apply heat-shrink tubing tightly over the rear half of the plug and the wire jacket. When you insert the plug into the terminal, ensure the materials overlap slightly. This overlap creates a temporary moisture barrier without using permanent adhesives. You can easily pull them apart when winter approaches.
Do not leave banana plugs or bare wire exposed to snow. This creates a severe high-oxidation node. Water freezes and expands inside the copper strands, ripping them apart. Furthermore, do not wrap exposed leads in electrical tape for the winter. The freezing temperatures degrade the backing. When spring arrives, you will find an immovable, frozen adhesive residue welded to the copper.
There is a superior technique for extreme climates. Cap exposed bare outdoor speaker wires with standard twist-on wire nuts. Before twisting them on, fill the inside of the wire nut completely with Noalox. Noalox is an anti-oxidant conductive paste commonly used in heavy electrical work.
The thick paste envelops the copper all winter long, repelling ice and moisture. It stays viscous even in freezing weather. When you reattach your equipment in the spring, the paste actually improves the connection quality. Simply wipe off the excess and hook up your system.
Exterior wiring introduces lightning and Electrostatic Discharge (ESD) risks to your home. Misunderstanding these risks can lead to catastrophic equipment failure. You must handle outdoor wiring with caution and reject common audio myths. If you feel unsure about your home's electrical safety profile, we recommend you contact us to explore best practices tailored to your environment.
Never ground the outdoor speaker wire directly. Many amateurs assume outdoor wires need an earth ground like standard high-voltage lines. This is false. Many modern audio amplifiers use a push-pull, or bridged, internal design. Grounding an audio signal wire will dead-short half the output stage. This instantly destroys the indoor amplifier in a puff of smoke. The audio signal itself operates at a low voltage and does not require grounding.
You still need to handle static. Wind, dry air, and nearby storms cause static electricity to accumulate. Instead of grounding the wire, ground external metal speaker housings. If you use mounting poles or metal conduit, connect those structural elements to an earth ground rod. This dissipates static buildup safely into the dirt without interfering with the audio signal path.
The most reliable defense for your indoor equipment is robust surge suppression. Install a dedicated audio-line surge protector. Place it right at the point where the cables penetrate the building exterior. If lightning strikes nearby, this device clamps down and shunts the high voltage away from your living room. Finally, ensure the indoor amplifier itself is properly grounded via its main AC power cord plugged into a grounded wall outlet.
Protecting outdoor speaker wire is an exercise in utilizing the right materials and managing environmental exposure. Start by specifying pure copper, direct-burial cables. Reject the urge to rely on standard electrical tape. Opt instead for overlapping heat-shrink, dielectric compounds, and proper water-shedding routing. Always install drip loops to defeat gravity-driven moisture.
For regions with harsh winters, plan for modularity using antioxidant-filled wire nuts to preserve connections year over year. Never ground the speaker signal lines; use dedicated inline surge suppressors instead. By treating the wiring with the same rigorous standards as high-voltage outdoor electrical runs, you ensure uninterrupted audio performance and heavily protect your indoor amplification equipment.
A: While conduit protects against physical damage, condensation still builds up inside underground PVC. Standard indoor wire jackets will degrade, and CCA wire will corrode. Always use direct-burial rated pure copper wire, even inside a conduit.
A: Standard silicone sealant is generally safe and highly effective at preventing terminal oxidation. Unlike permanent glues, it can be peeled away with pliers if maintenance is required. However, ensure it is fully cured before exposing it to moisture.
A: No. Grounding the audio cables directly can destroy your amplifier. Lightning and surge protection should be handled by an inline audio surge protector installed before the wire enters your home, and by grounding any metal outdoor structural poles independently.
A: If the copper has turned green or black, it cannot be reliably cleaned to restore full conductivity. You must trim the wire back along the jacket until you find shiny, unoxidized pure copper, then strip and re-terminate.
